Automatic Butt Fusion Machine CW315

Automatic Butt Fusion Machine CW 315

The fully automatic hot melt welding machine is specifically designed and developed for polyethylene pressure pipelines in the gas and water industries, complying with natural gas industry standards (GIS/PL-3 and CJJ63-2018 technical specifications).

All welding parameters are controlled and monitored by a highly integrated embedded real-time operating system to ensure each weld joint meets specified criteria. If any parameter deviates from the set range, the system will immediately terminate the welding process and provide error guidance, enabling operators to promptly correct the issue.

**Lampstand**
• Lightweight, compact, and sturdy structure capable of resisting bending under heavy loads.
• Displacement sensors ensure accurate weld bead dimensions under any ambient temperature.
• Quick-clamping system enhances efficiency and reliability.
• The Zlink system enables symmetrical heating plate retraction, reducing dwell time.
• The fourth clamp is detachable to facilitate welding of elbows, tees, and other long spigot fittings.
• Lightweight yet tough composite plastic clamping rings are provided for diameters of 250mm and below.
• Full range of aluminum clamping rings available.

**Milling Cutter**
• Hard anodized low friction disc.
• Low maintenance.
• Curved blades for optimal cutting.
• Electronic milling cutter switch prevents over-milling.
• Right-angle turn secures studs.
• Sturdy and reliable milling cutter motor.
• Developed automatic milling cycle software to maximize material removal while protecting the motor.
• Automatic feathering function ensures perfectly smooth and square pipe ends.

Packing: Up to exportation level plywood case for machines, standard carton for minor parts. Customized metal sheet box optional.

Shipping: Standard Ocean,land and air shipping available. Our professional can help you quickly decide delivery choice.

FEI is a leading innovator in the production of high-performance welding equipment, strategically headquartered near Shanghai, China. With proximity to major global shipping hubs, we ensure efficient logistics and seamless delivery to clients worldwide. As a technology-driven enterprise specializing in plastic pipeline welding solutions, the company integrates global advanced technologies to develop and manufacture a comprehensive range of equipment including Automatic Butt Fusion.

Pipe Butt Welding Machine 50Hz

Automatic Pipe Butt Welding Machine

Pipe Butt Fusion Joint Machine

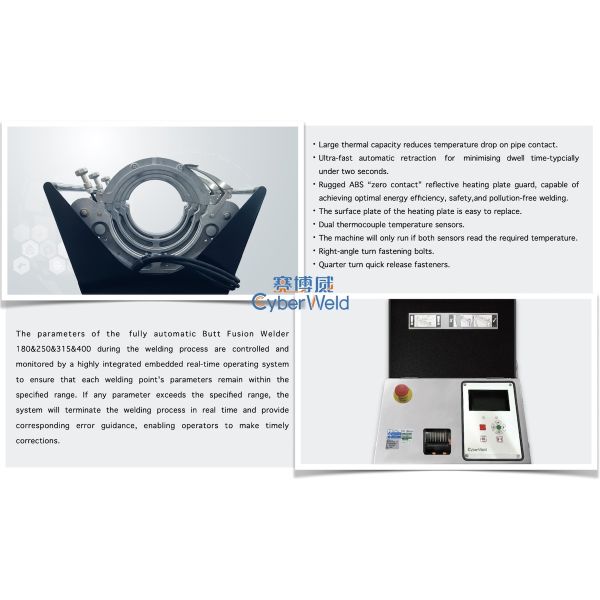

Fully Automatic Pipe Butt Welding Machine 50Hz HDPE PP Pipe Butt Fusion Joint Machine Images
